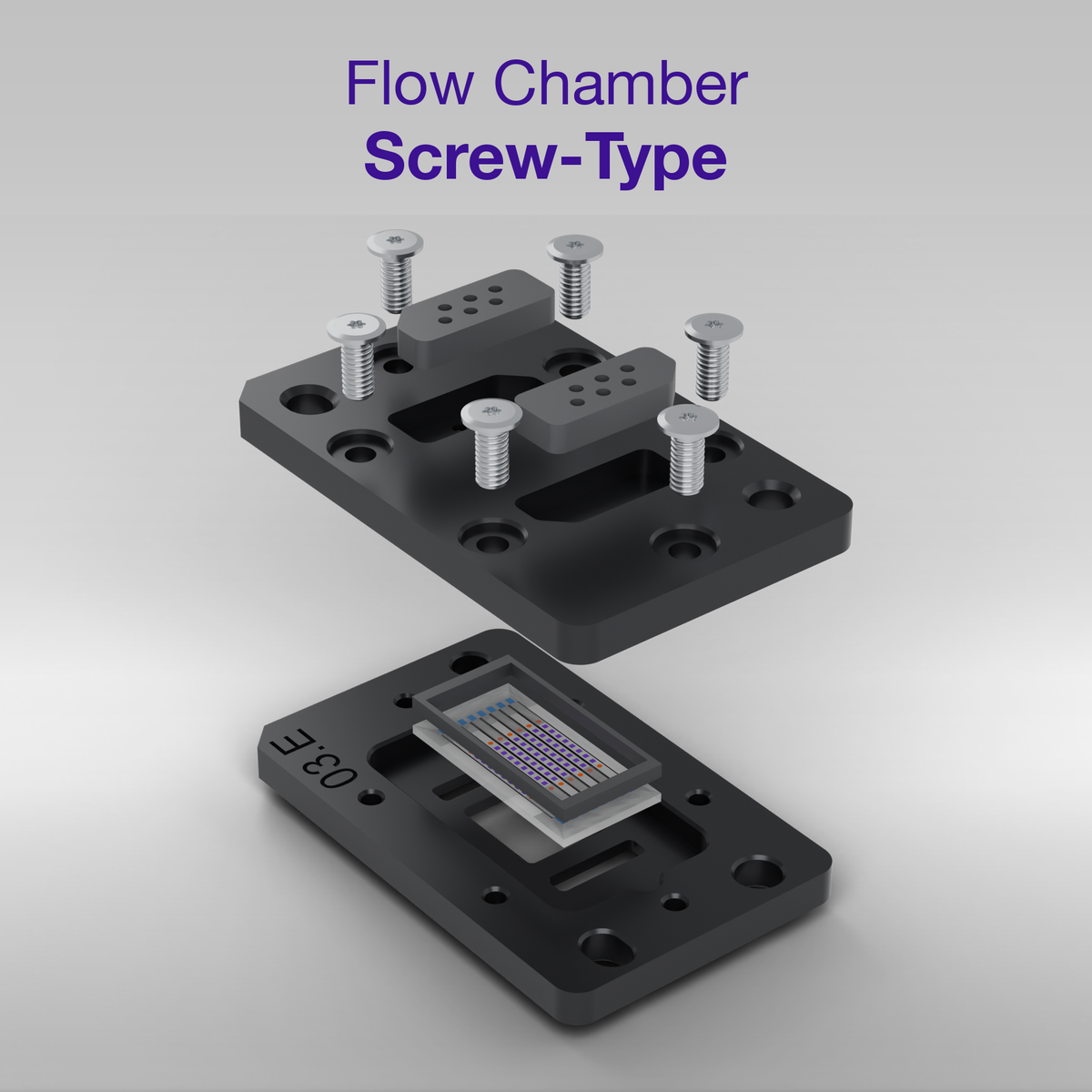

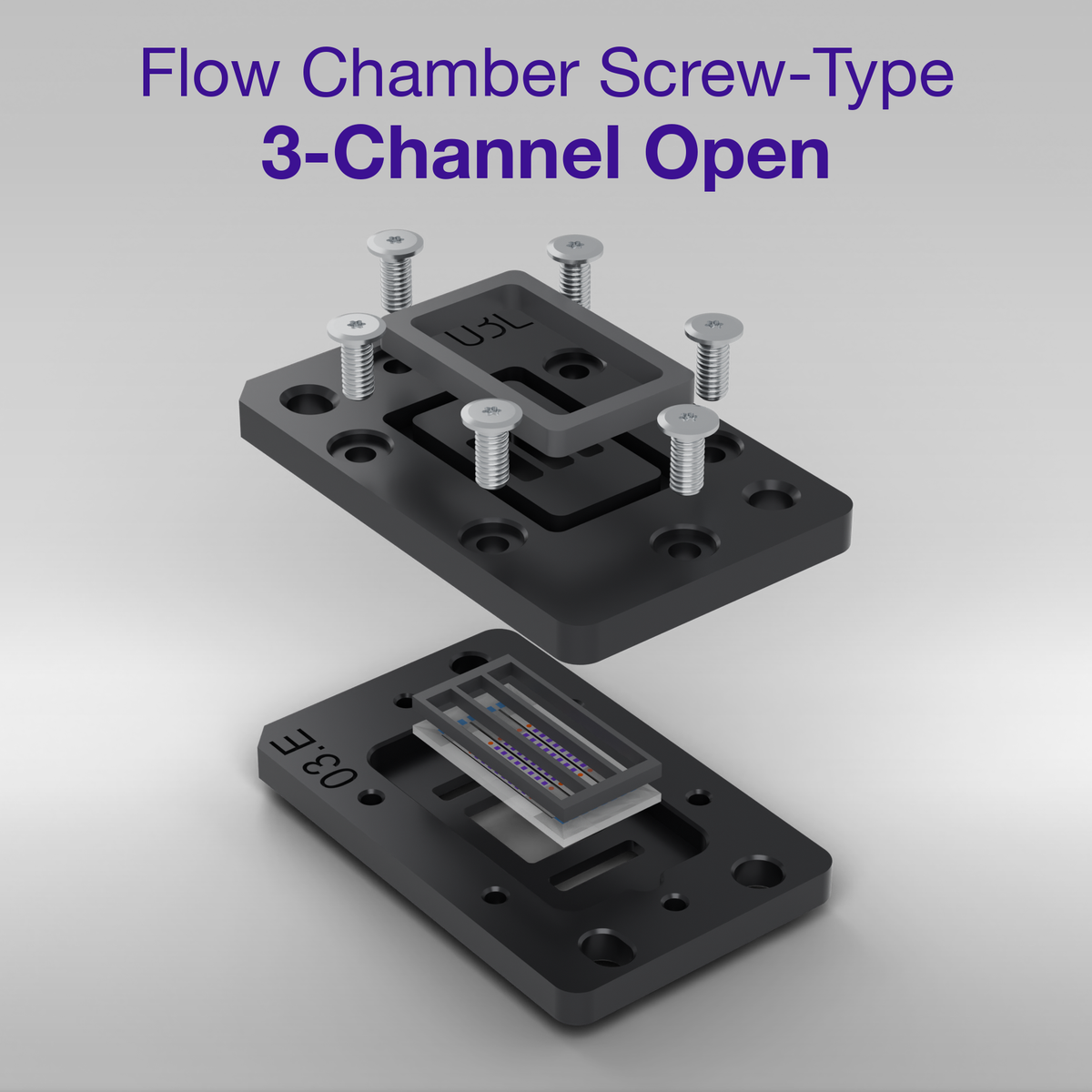

Reusable flow chamber for the MACS Matchmaker, with a PEEK upper part and an anodised aluminium base plate. Available in 1-channel and 3-channel configurations, each as a closed or an open chamber. All four versions share the same screw-type body, the replaceable silicone seals and the same chip compatibility.

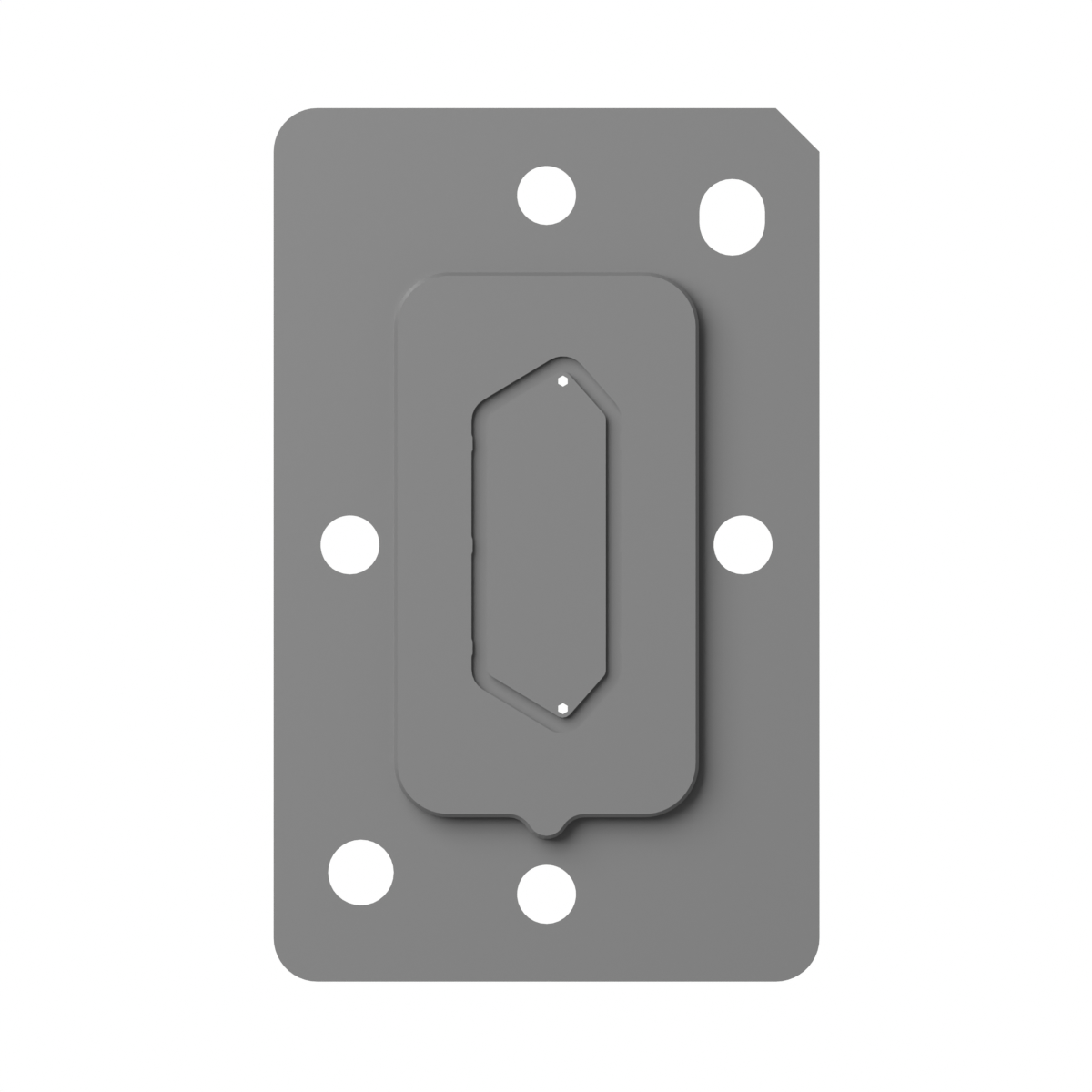

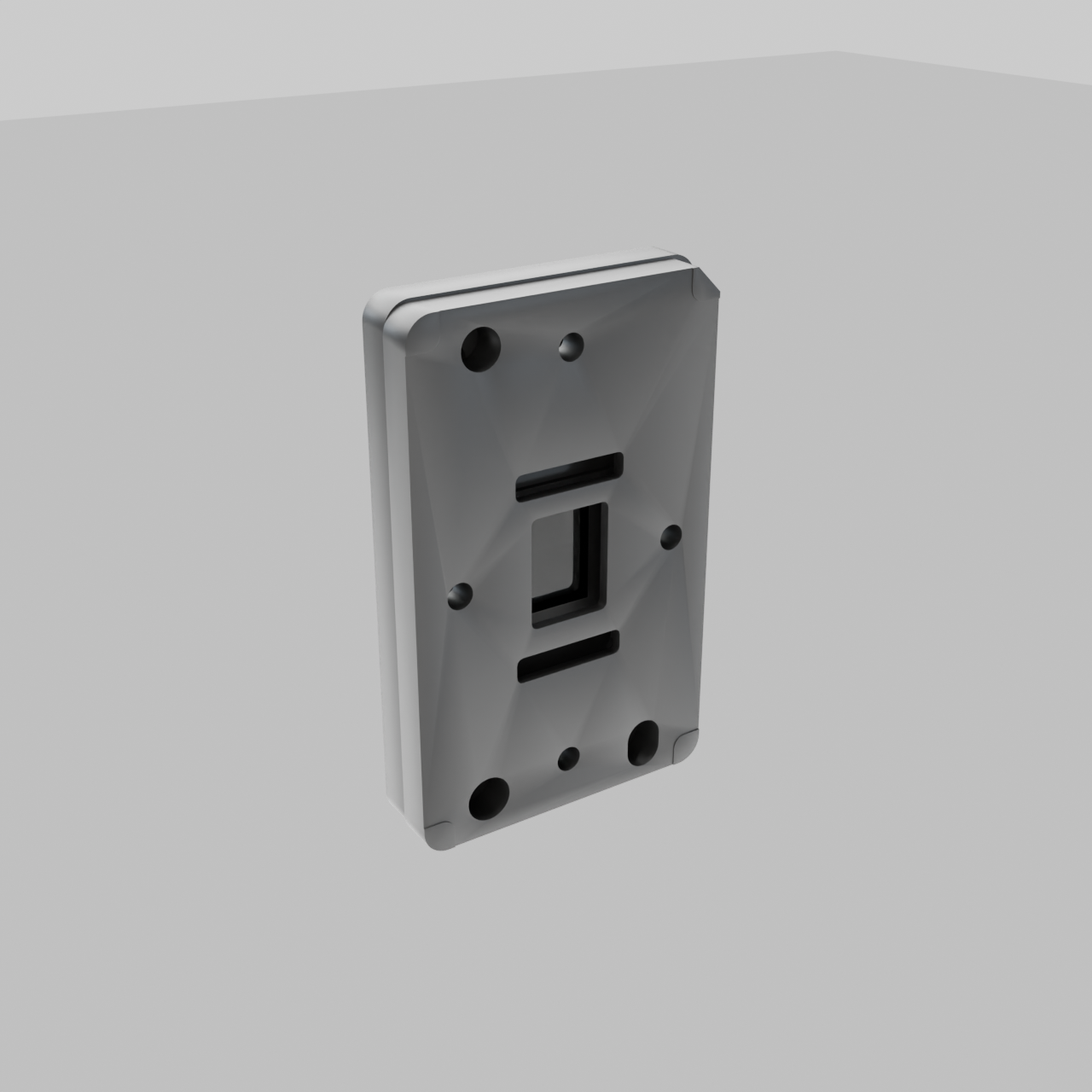

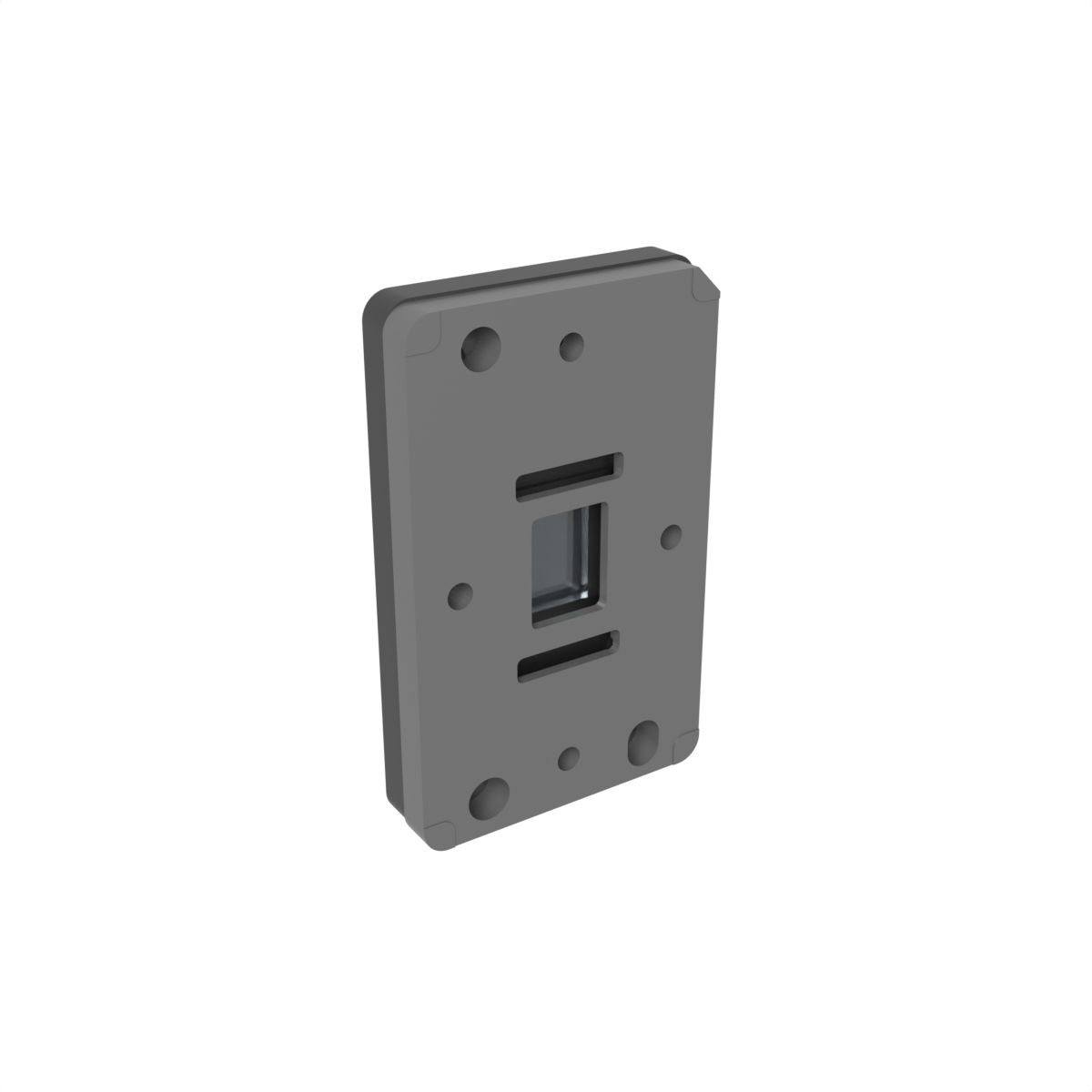

1 or 3 parallel flow channels
Closed or open chamber
PEEK upper part for broad chemical compatibility, anodised aluminium base plate

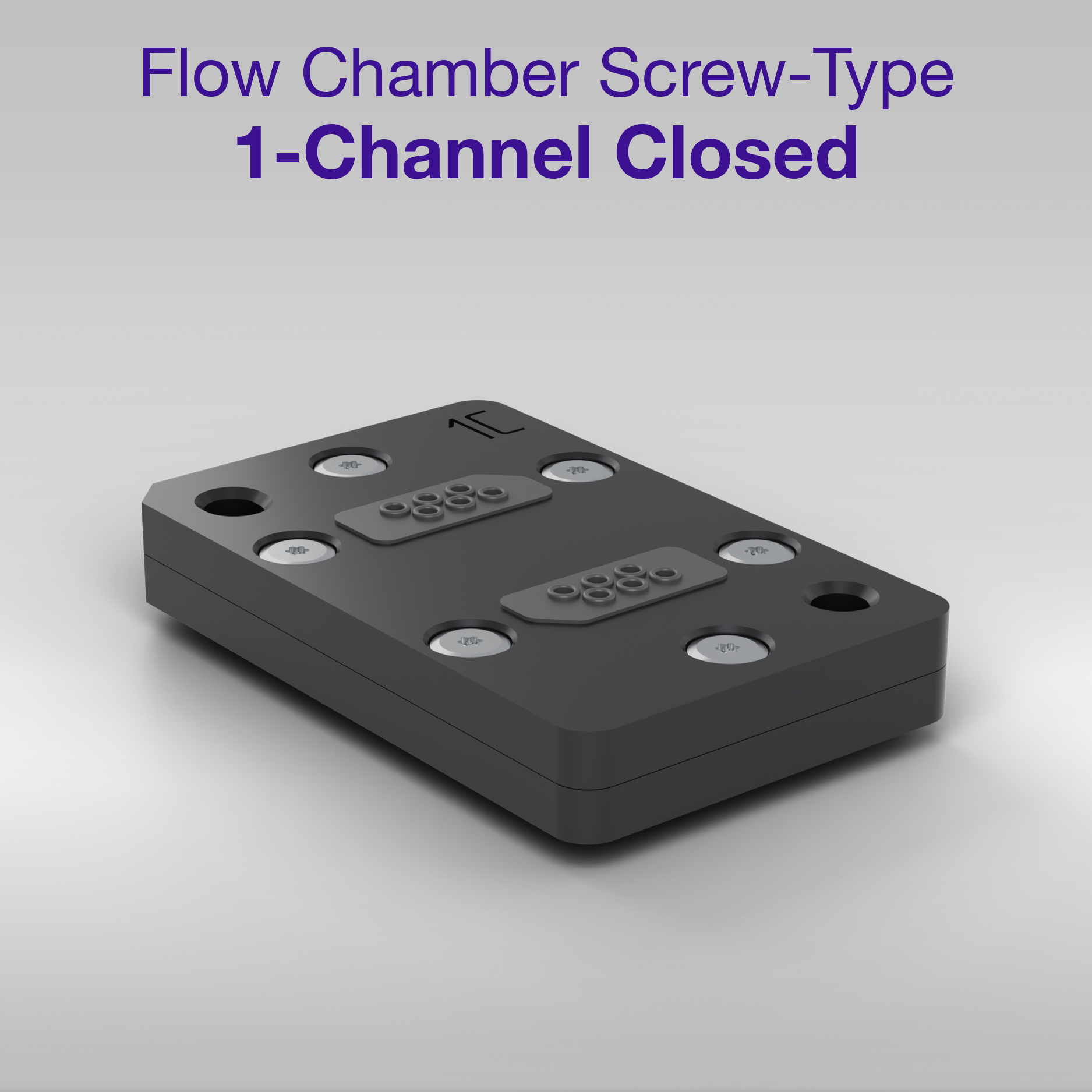

Screw-mounted assembly, no special tooling required
Replaceable black silicone seals for repeated use with appropriate cleaning between runs
Accepts standard mologram chips
Includes replacement seal set and a cleaning protocol

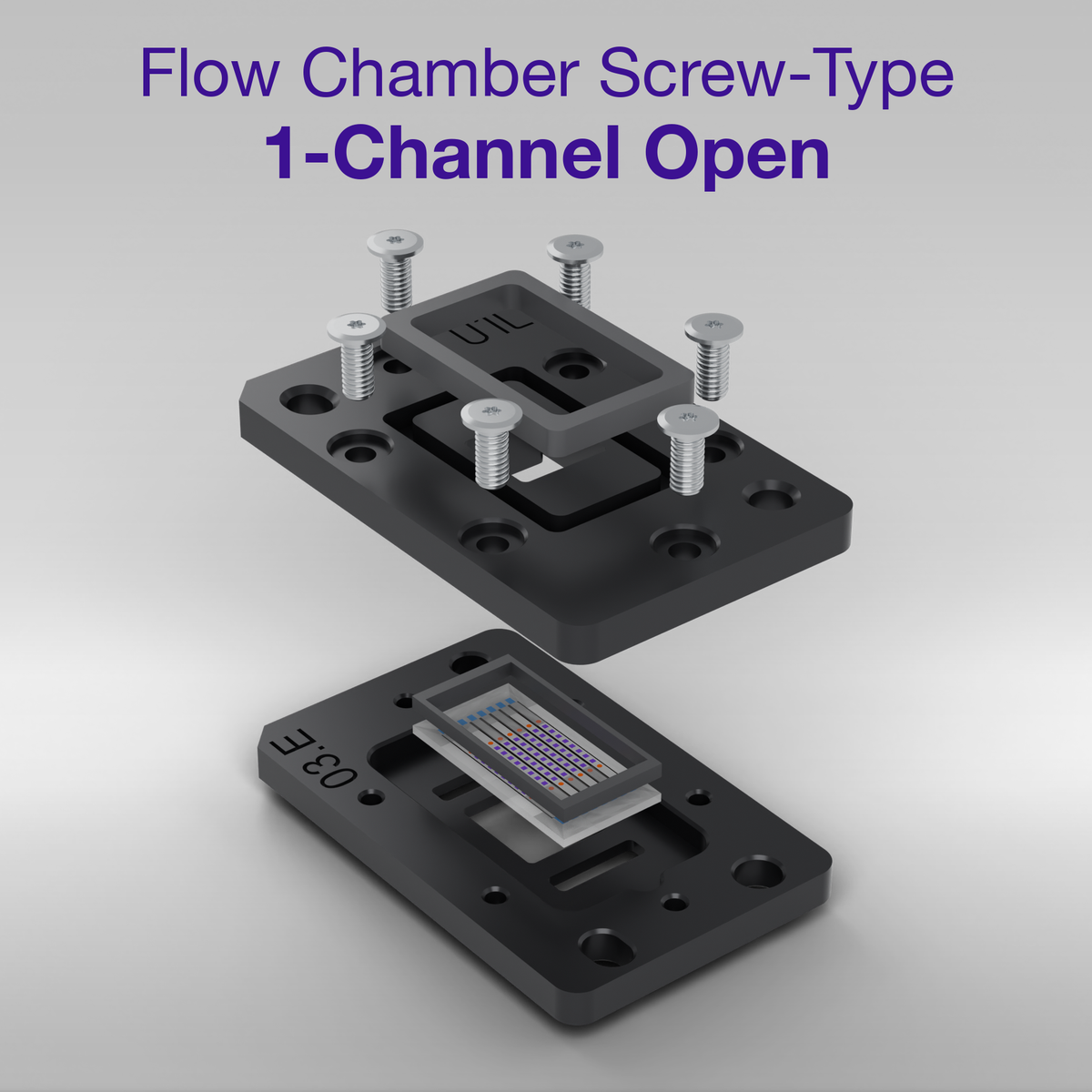

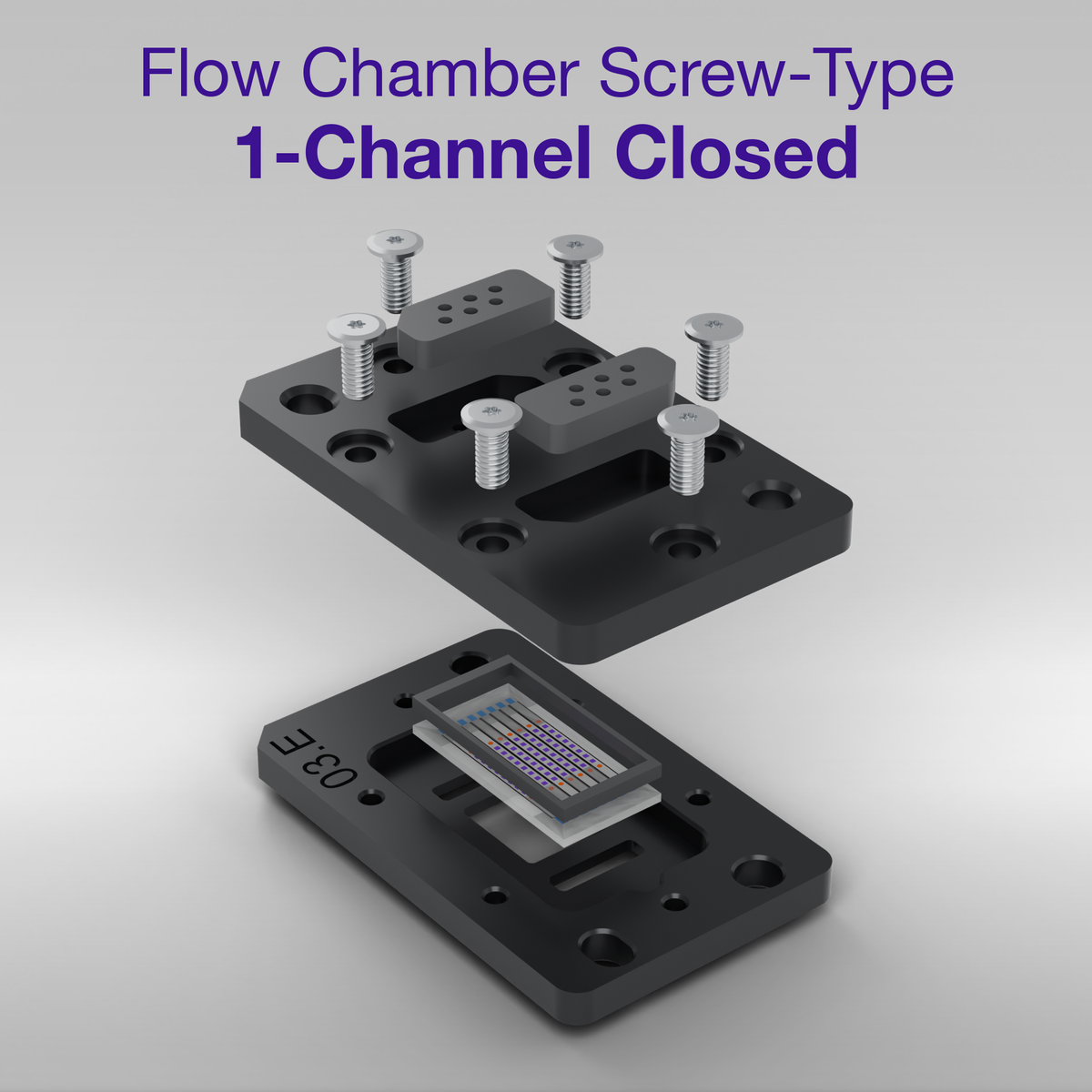

Choose Closed for flow-based binding experiments, where sample is pumped through the sealed channel. Choose Open for work with low pipetting volumes and for cell-based experiments, where the chamber is accessed from above.

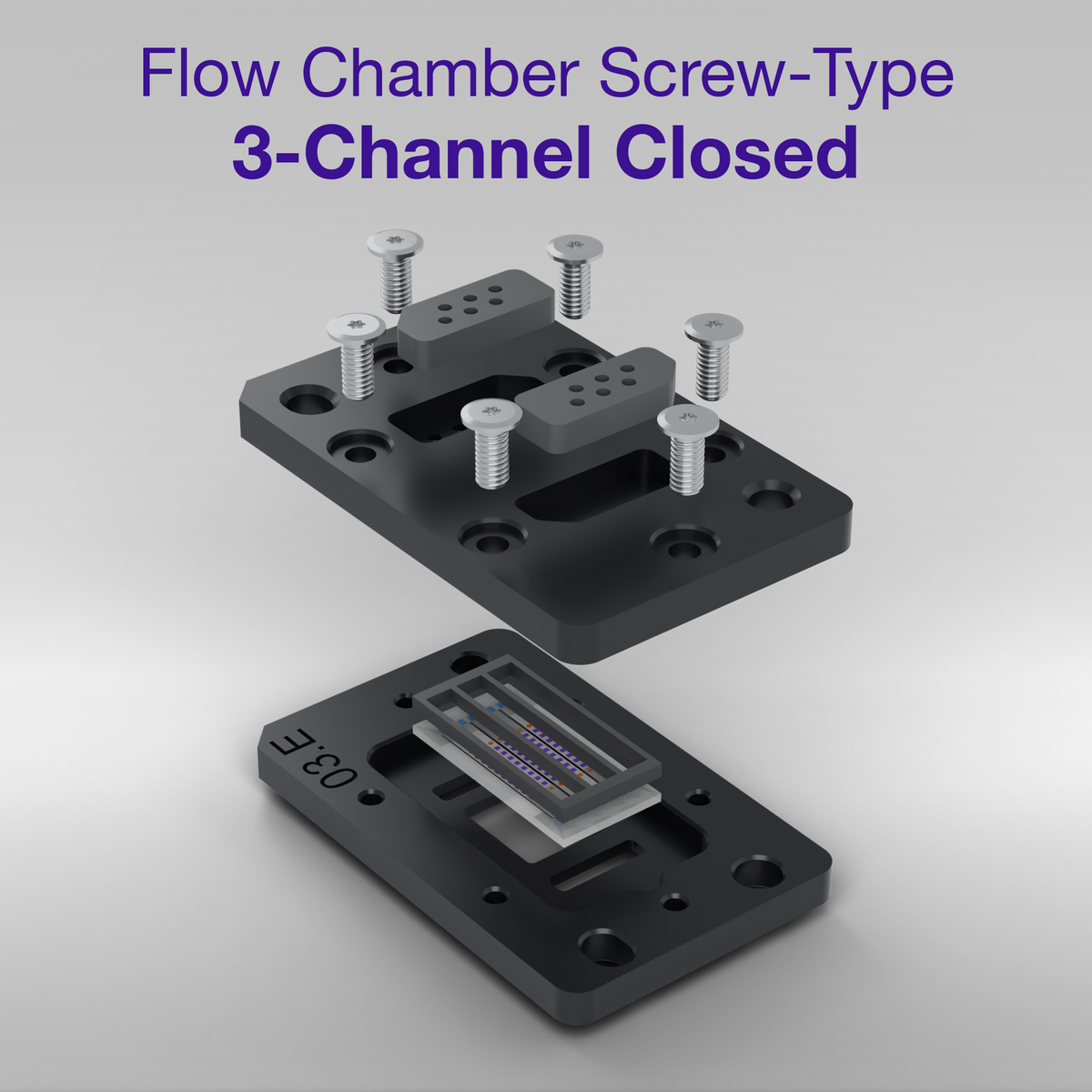

Choose 1-channel for routine single-channel work and 3-channel to run three samples side by side without re-priming the system. For rapid chip exchange see the Clip-Chip PEEK variants.
