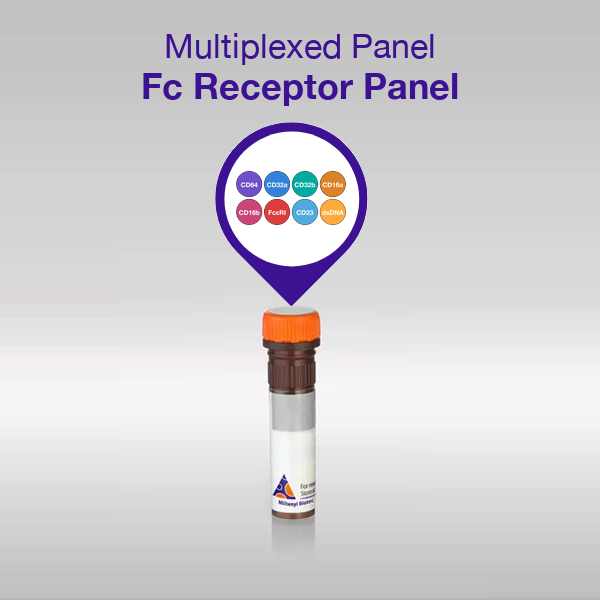

Fc Receptor Panel

The Fc Receptor Panel is a ready-to-use multiplexed binder set for the MACS Matchmaker focal molography platform. It profiles the full Fcγ receptor family alongside the high- and low-affinity IgE receptors on a single chip in approximately one hour.

The panel runs on the Sensor [Oligo|PEG] 8-plex with seven pre-conjugated Fc receptors at fixed oligonucleotide sequences 1–7, plus an oligo-only construct on slot 8 that mimics the DDI interface without a captured receptor. The reference slot supports DNA-layer non-specific binding subtraction; authentic Fc-mediated signals on slots 1–7 produce no response on this channel.

Panel composition

1. FcγRI (CD64), human, activating high-affinity
2. FcγRIIa (CD32a), human, activating
3. FcγRIIb (CD32b), human, inhibitory
4. FcγRIIIa (CD16a), human, activating
5. FcγRIIIb (CD16b), human, GPI-anchored activating
6. FcεRI, human, high-affinity IgE receptor
7. FcεRII (CD23), human, low-affinity IgE receptor
8. Complementary oligonucleotide (oligo-only NSB reference)

For antibody half-life and FcRn cross-species characterization, see the separate FcRn Species Panel (pH-switch single-cycle kinetics workflow, six FcRn species, runs on the same MACS Matchmaker instrument).

Applications

For applications, workflow, kinetic benchmarks, allotype-extended chip configuration (FcγRIIa H131/R131, FcγRIIIa V158/F158) and references, see the Fc Receptor Panel application page.

Specifications

• Format: pre-conjugated receptor mix, NHS-conjugated DDI oligos
• Volume: 110 µL
• Concentration: 2.6 µM per ligand
• Injections: 10 (at 200 nM, 130 µL injection volume)
• Storage solution: PBS-T
• Built-in QC: oligo-only reference channel on slot 8 for direct DNA-layer NSB subtraction

For research use only. Not for diagnostic or therapeutic procedures.
